LZSF Series Asphalt Circular Vibrating Screen

Inquire Now Next Product

product details

Industry solutions:

1 Application

The series of screening machines, focusing on the characteristics of mixing industries of the asphalt concrete, meeting the growing demand of market development, on the basis of adopting the advantages of screening machines of the same field at home and abroad, are researched and developed by our own efforts. The screening machines have the features of well-designed structure, light weight, high productivity, smooth in work and high reliability. The series of screening machines, which can work as usual at the condition that the feeding temperature is 180℃, is an ideal screening equipment in the mixing industries of the asphalt concrete, and are mainly used in the asphalt concrete road construction.

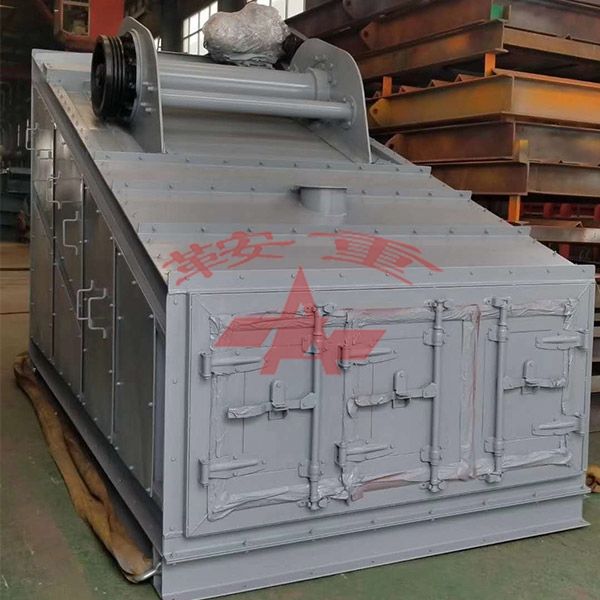

LZSF Series Asphalt Circular Vibrating Screen

2 Specification And Technical Features

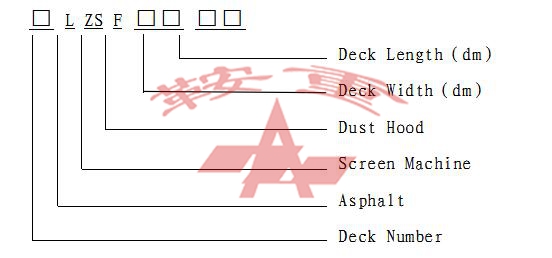

2.1 Model Indication

LZSF Series Asphalt Circular Vibrating Screen

2.2 Specification

Model	Screen Deck				FeedingSizemm	Output t/h	Motor
	DeckNumber	Area (m²)	Opening Size（mm）	Screen Forms			Motor
	DeckNumber	Area (m²)	Opening Size（mm）	Screen Forms			Model	Power
4LZSF1226	4	8.76	5-40	woven	≤100	40-50	Y132M-4	7.5
4LZSF1234	4	12.1	5-40	woven	≤100	60-80	Y160M-4	11
4LZSF1534	4	15.2	5-40	woven	≤100	100-120	Y160M-4	11
4LZSF1540	4	18.5	5-40	woven	≤100	140-160	Y160M-4	11
4LZSF1840	4	22	5-40	woven	≤100	180-200	Y160M-4	11
4LZSF1248	4	23.04	5-40	woven	≤100	220-240	Y160L-4	15
4LZSF1548	4	28.8	5-40	woven	≤100	320-340	Y180M-4	18.5
5LZSF1540	5	23.4	5-40	woven	≤100	140-160	Y160L-4	15
5LZSF1248	4	28.8	5-40	woven	≤100	220-240	Y180M-4	18.5

Note: mesh to be select should be more than one time and less than 1.3 time laboratory data. Optimum size is 1.1-1.2 time laboratory data.
