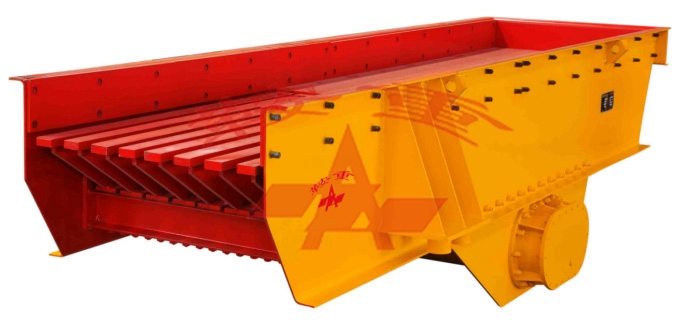

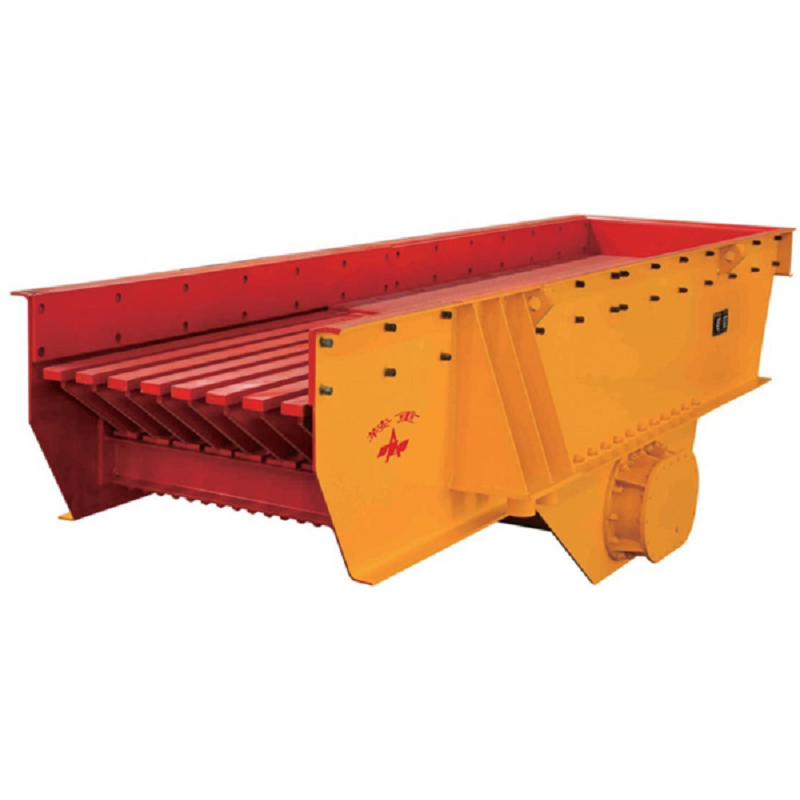

GZZ vibrating feeder

●The vibrator is an eccentric shaft vibrator, which is installed on the screen frame through the shaft cover tube. Two groups are arranged side by side. The structure is firm and can enhance the stiffness of the screen frame. The screen machine bearings are evenly arranged, with large exciting force and strong load-bearing capacity. The two sets of eccentric shafts of the vibrator are forcibly synchronized through gears, making the movement smooth and reliable, and the material runs at a uniform speed.

●The bearing lubrication adopts thin oil lubrication, the oil film is fully lubricated, the service life is relatively long, and maintenance is convenient. The sealing method adopts skeleton oil seal and rubber gasket seal.

●The plates are rolled from Ansteel. The shape cutting and positioning holes of the steel plate are completed by high-precision CNC cutting machines to ensure the accuracy of the shape and drilling position. Reinforcing ribs or protective plates are reasonably arranged in the areas where the side plates are subject to greater stress to effectively increase the strength of the side plates.

●The screen frame has an I-shaped steel beam on the top and a crisscross rectangular beam on the bottom, which makes the screen frame more rigid overall, resistant to impact, and has a large material holding capacity. It can be started with material load to meet the needs of large particle size and large  capacity.

●The position of the vibrator is scientifically arranged and fixed at the back and lower part of the screen box. The position here has high stiffness and the material comes from top to bottom. The vibrator vibrates from bottom to front, which is very reasonable.

                           Technical Parameters
