Installation Process of Linear Vibrating Screen

The linear vibrating screen has been widely used in coal screening in the coal mining industry to deliver the material from the feeder evenly to the inlet of the sifter. Through the multi-layer screen, multiple screens and screens are produced. It is then discharged from the respective discharge ports. The linear vibrating screen uses the vibration motor excitation as the vibration source so that the material is thrown onto the screen mesh and moves forward in a straight line. Materials from the feeder into the linear vibrating screen inlet sifter through the multi-layer uniform, so how do we properly install the linear vibrating screen? Next, the linear vibrating screen manufacturer will share the following content with you.

Installation steps of linear vibrating screen

1. Place the machine on a flat, solid horizontal ground (concrete or steel ground), then insert the ground bolts (ground bolts are provided by the user) and fix it.

2. The spring is placed on the upper and lower seat ring (placing the screen), and the spring should enter the spring seat completely to ensure that the vertical is not distorted.

3. The vibrating part of the sifter should not be rigidly connected or in contact with other objects outside the machine.

4. The motor can be installed horizontally and should be fixed on the installation surface to ensure that the installation surface is smooth and flat.

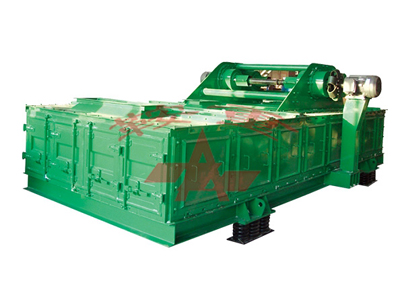

Linear Vibrating Screen

5. The motor lead adopts YZ-500V four-core rubber cable, and when connecting the power supply, the lead cable is not allowed to have obvious creases and is firmly fixed with the vibrating body.

6. The motor should have reliable grounding. There is a grounding device inside the motor, with markings on the front end, which also can be fixed with a strong ground anchor.

7. Adjust the excitation force, linear vibrating screen through its vibration area open or stop will produce a lot of vibration. To improve this situation, an electric brake can be connected.

Installation precautions of linear vibrating screen

1. Note that you must choose a screen with a larger wire diameter because the installation of the linear screen is more troublesome.

2. The width of the screen should be the same as the mesh frame when cutting, and the length must be 50~70mm longer than the mesh frame.

3. The screen must be tightened during installation because the tightness of the screen is an important factor affecting the sieving.

4. When installing the transparent mesh bouncing ball, you must pay attention to the difficulty of the screening material and the number of mesh, and you cannot install it blindly.

5. If the material ratio is large or the mesh of the screen is high, a suitable support network should be added under the screen, the purpose is to play a supporting role to reduce the pressure of the material on the screen and extend its service life.

6. After the screen frame is assembled to the screen box as required, remember to stretch the long-out screen into the corresponding outlet to avoid mixing.

7. When installing the pressure plate, be sure to pay attention to its flatness and lock it evenly with soft sponge sealing tape, because this is the key to prevent mixing in and an important factor affecting the service life of the pressure plate.
