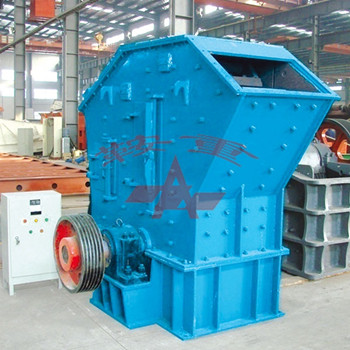

Five Advantages of Impact Crusher

The impact crusher is named according to its working principle, that is, the principle of impact crushing is used to crush materials, and it is mainly used for fine crushing in the stone production line.

The impact crusher has the following five advantages in the crushing process.

1. The impact crusher is more effective in processing materials with a large amount of moisture and effectively prevents materials from clogging. When the water content of the processed material is too large, the feed chute and the impact plate of the impact crusher can be equipped with a heating device to prevent the material from sticking. The impact crusher does not need to be equipped with a bottom screen, which can effectively prevent clogging.

2. The impact crusher is applicable to a wider range of material hardness. The plate hammer of the impact crusher is firmly fixed on the rotor with a mechanical clamping structure and has a large moment of inertia when rotating with the rotor. It has greater momentum, adapts to crushing harder materials, and consumes less energy.

3. The discharge particle size can be adjusted conveniently and flexibly, with a wide range of adjustment. The impact crusher can adjust the discharge particle size in a variety of ways, such as adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber. The gap adjustment can be adjusted mechanically or hydraulically, and the hydraulic adjustment system can be used to easily complete the gap adjustment through the on-site operation button or the travel control system.

4. The wear of vulnerable parts is small, and the metal utilization rate is high. The wear of the hammer of the counterattack stone breaker only appears on the side facing the material. When the rotor speed is normal, the feed material will fall to the surface of the blow hammer (blow surface), and the back and sides of the blow hammer will not be worn. Even the wear on the side facing the material is very small. And the bottom grinding rod is easy to replace. The metal utilization rate of the impact crusher plate hammer can be as high as 45%-48%.

5. The replacement of spare parts of the impact crusher is easy, and the maintenance cost is correspondingly reduced. Only 6 hammers are installed on the rotor of the impact crusher. The designed special tools can be used to easily replace the hammers. Only one hammer is needed to replace a set of hammers. The time of the shift.
