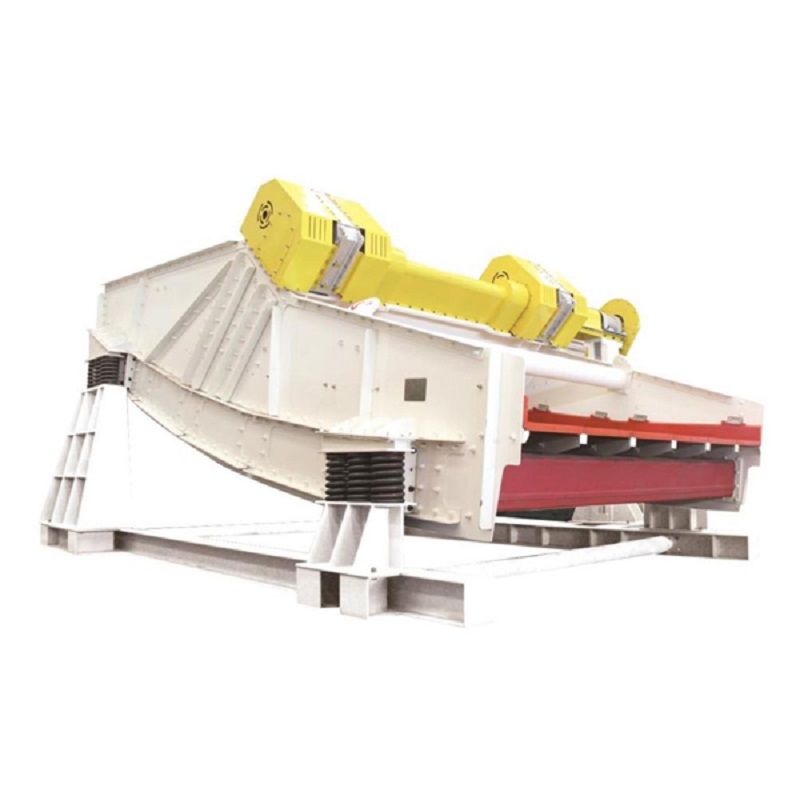

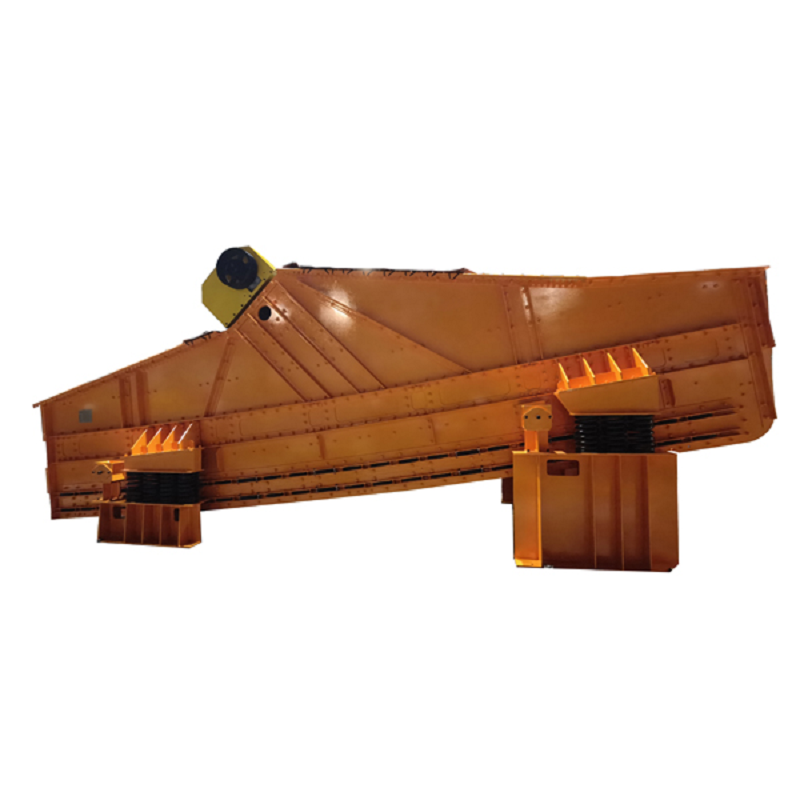

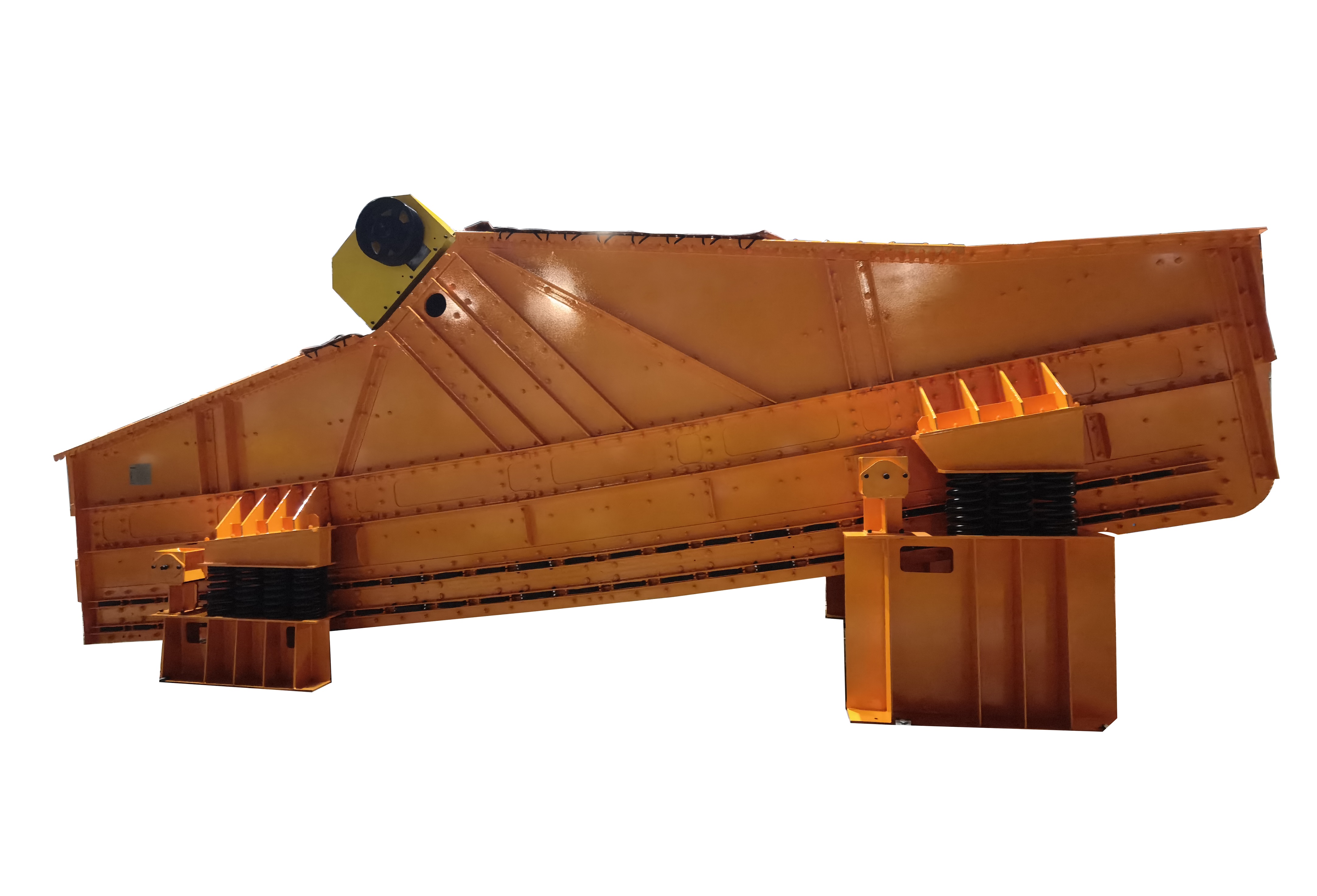

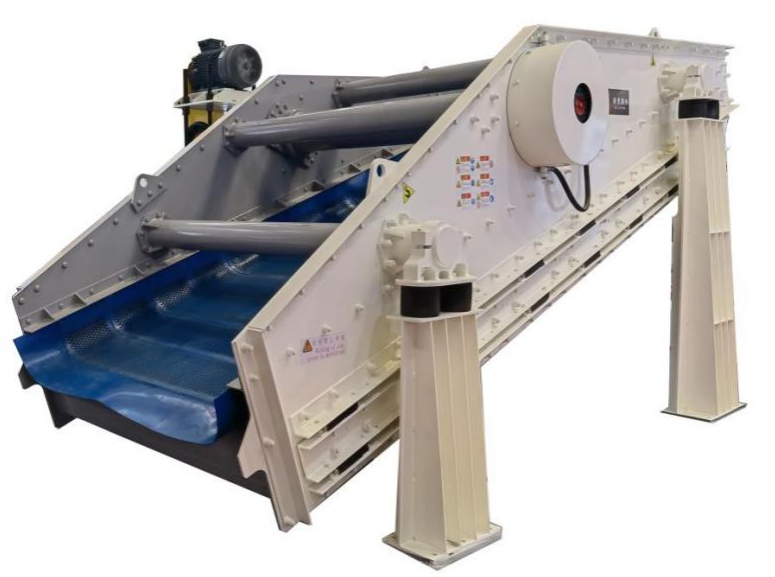

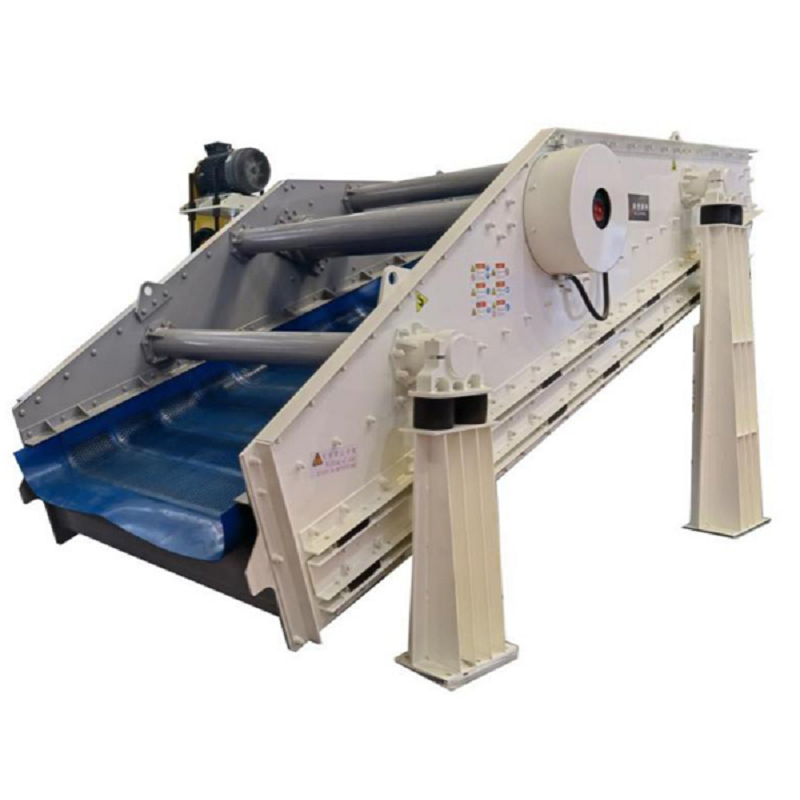

FLIP-FLOP SCREEN

According to the vibration trajectory, the relaxation screen is divided into circular vibration trajectory relaxation screen and linear vibration trajectory relaxation sieve. It is mainly used for particle size classification of various medium and fine particles and powder materials. The industry grading problems of sticky holes and stuck holes can also achieve the ideal screening effect for the screening of viscous and wet fine particle coal (3-13mm, water content 7-14%).

Inquire Now Next Product

product details

Industry solutions:

Flip-flop is divided into the circular flip-flop and linear flip-flop according to the vibration track. It is mainly used for particle size classification of various medium and fine particles and powder materials. The classification particle size is 3-25mm, which solves the classification problem of materials with sticky openings and stuck openings, and can also achieve ideal screening results for screening of sticky and wet fine particle coal (3-13mm, water content 7-14%).

l The main machine vibrates under low vibration intensity, and the screen surface and materials run under high projection intensity (the projection acceleration of the material is 30 to 50 times the acceleration of gravity). The material particles have a high jumping stroke, are loose and divided quickly, and are thoroughly screened, which reduces the inertial force of the machine body's operation, greatly extending the service life of the screen machine, and achieving high efficiency and energy saving.

l The screen openings of the screen panel can produce slight deformation with the relaxation movement, which can effectively overcome the phenomenon of stuck openings and blocked openings in the material. It has a self-cleaning function. The unit area of the screen machine has high screening efficiency and large processing capacity.

l The screen panel is made of high-elastic polyurethane material, which is wear-resistant and tensile-resistant, with a high opening rate. The fixing method does not require bolts, and it is easy to disassemble and replace.

l The whole screen frame is assembled by cold riveting technology (ring groove rivet connection) to avoid uneven assembly stress and vibration loosening; the main body of the side plate is made of high-strength plate to ensure its mechanical properties.The vibrator bearing is lubricated with thin oil, which is fully lubricated and long service life, the lower cross beam of the screen frame adopts an isotropic rectangular beam, which has high reliability.

FLIP-FLOP SCREEN

Technical Parameters

Screen model	Layer No.	Screening surface size(mm)	Screen area(m²)	Opening size(mm)	Power(Kw)
YCZS1236	1	1200X3600	4.32	3-13	11
YCZS1548	1	1500X4800	7.2	3-13	15
YCZS1848	1	1800X4800	8.64	3-13	15
YCZS1860	1	1800X6000	10.8	3-13	15
YCZS2160	1	2100X6000	12.6	3-13	18.5
YCZS2460	1	2400X6000	14.4	3-13	30
YCZS2480	1	2400X8000	19.2	3-13	30
YCZS3060	1	3000X6000	18	3-13	2X22
YCZS3073	1	3000X7300	21.9	3-13	2X22
2YCZS1236	2	1200X3600	2X4.32	3-13	11
2YCZS1548	2	1500X4800	2X7.2	3-13	15
2YCZS1848	2	1800X4800	2X8.64	3-13	15
2YCZS1860	2	1800X6000	2X10.8	3-13	15
2YCZS2160	2	2100X6000	2X12.6	3-13	22
2YCZS2460	2	2400X6000	2X14.4	3-13	30
2YCZS2480	2	2400X8000	2X19.2	3-13	30
2YCZS3060	2	3000X6000	2X18	3-13	2X30
2YCZS3073	2	3000X7300	2X21.9	3-13	2X30
2YCZS3080	2	3000X8000	2X24	3-13	2X30
2YCZS3090	2	3000X9000	2X27	3-13	2X30
2YCZS3673	2	3600X7300	2X26.28	3-13	2X30
2YCZS3690	2	3600X9000	2X32.4	3-13	2X37

Technical Parameters

Screen model	Layer No.	Screening surface size(mm)	Screen area(m²)	Opening size(mm)	Power(Kw)
ZCZS1536	1	1500X3600	5.4	3-13	18
ZCZS1848	1	1800X4800	8.64	3-13	22
ZCZS1860	1	1800X6000	10.8	3-13	22
ZCZS2445	1	2400X4500	10.8	3-13	22
ZCZS2461	1	2400X6100	14.64	3-13	30
ZCZS3061	1	3000X6100	18.3	3-13	37
ZCZS3073	1	3000X7300	21.9	3-13	37
ZCZS3673	1	3600X7300	26.28	3-13	45
ZCZS3685	1	3600X8500	30.6	3-13	45
2ZCZS1536	2	1500X3600	2X5.4	3-13	22
2ZCZS1848	2	1800X4800	2X8.64	3-13	30
2ZCZS1861	2	1800X6100	2X10.98	3-13	30
2ZCZS2445	2	2400X4500	2X10.8	3-13	37
2ZCZS2461	2	2400X6100	2X14.64	3-13	37
2ZCZS3061	2	3000X6100	2X18.3	3-13	55
2ZCZS3073	2	3000X7300	2X21.9	3-13	75
2ZCZS3673	2	3600X7300	2X26.28	3-13	75
2ZCZS3685	2	3600X8500	2X30.6	3-13	75
2ZCZS4373	2	4300X7300	2X31.39	3-13	90
2ZCZS4385	2	4300X8500	2X36.55	3-13	90
2ZCZS43100	2	4300X10000	2X43	3-13	90
2ZCZS43120	2	4300X12000	2X51.6	3-13	90

Technical Parameters

Screen model	Layer No.	Screening surface size(mm)	Screen area(m²)	Opening size(mm)	Power(Kw)
ZXCZS1861	1	1800X6100	10.98	3-13	22
ZXCZS2461	1	2400X6100	14.64	3-13	30
ZXCZS2473	1	2400X7300	17.52	3-13	30
ZXCZS3061	1	3000X6100	18.3	3-13	37
ZXCZS3073	1	3000X7300	21.9	3-13	37
ZXCZS3085	1	3000X8500	25.5	3-13	37
ZXCZS3661	1	3600X6100	21.96	3-13	45
ZXCZS3673	1	3600X7300	26.28	3-13	45
ZXCZS3685	1	3600X8500	30.6	3-13	45
ZXCZS4361	1	4300X6100	26.23	3-13	55
ZXCZS4373	1	4300X7300	31.39	3-13	55
ZXCZS4385	1	4300X8500	36.55	3-13	55
2ZXCZS1861	2	1800X6100	2X10.98	3-13	30
2ZXCZS2461	2	2400X6100	2X14.64	3-13	37
2ZXCZS2473	2	2400X7300	2X17.52	3-13	37
2ZXCZS3061	2	3000X6100	2X18.3	3-13	55
2ZXCZS3073	2	3000X7300	2X21.9	3-13	75
2ZXCZS3085	2	3000X8500	2X25.5	3-13	75
2ZXCZS3661	2	3600X6100	2X21.96	3-13	75
2ZXCZS3673	2	3600X7300	2X26.28	3-13	75
2ZXCZS3685	2	3600X8500	2X30.6	3-13	75
2ZXCZS4361	2	4300X6100	2X26.23	3-13	90
2ZXCZS4373	2	4300X7300	2X31.39	3-13	90
2ZXCZS4385	2	4300X8500	2X36.55	3-13	90
2ZXCZS43100	2	4300X10000	2X43	3-13	90
2ZXCZS43120	2	4300X12000	2X51.6	3-13	90
2ZXCZS49120	2	4900X12000	2X58.8	3-13	2X55
